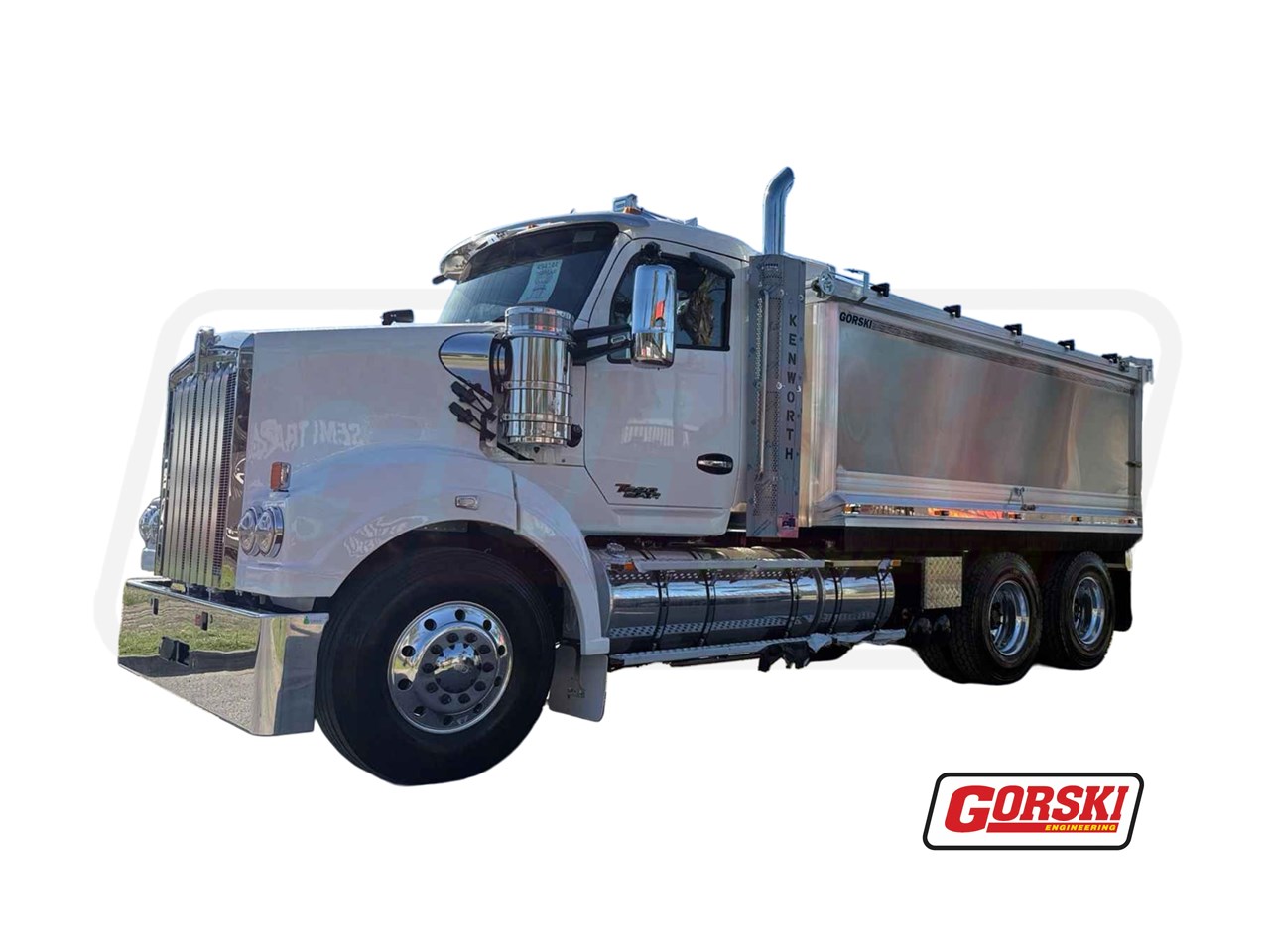

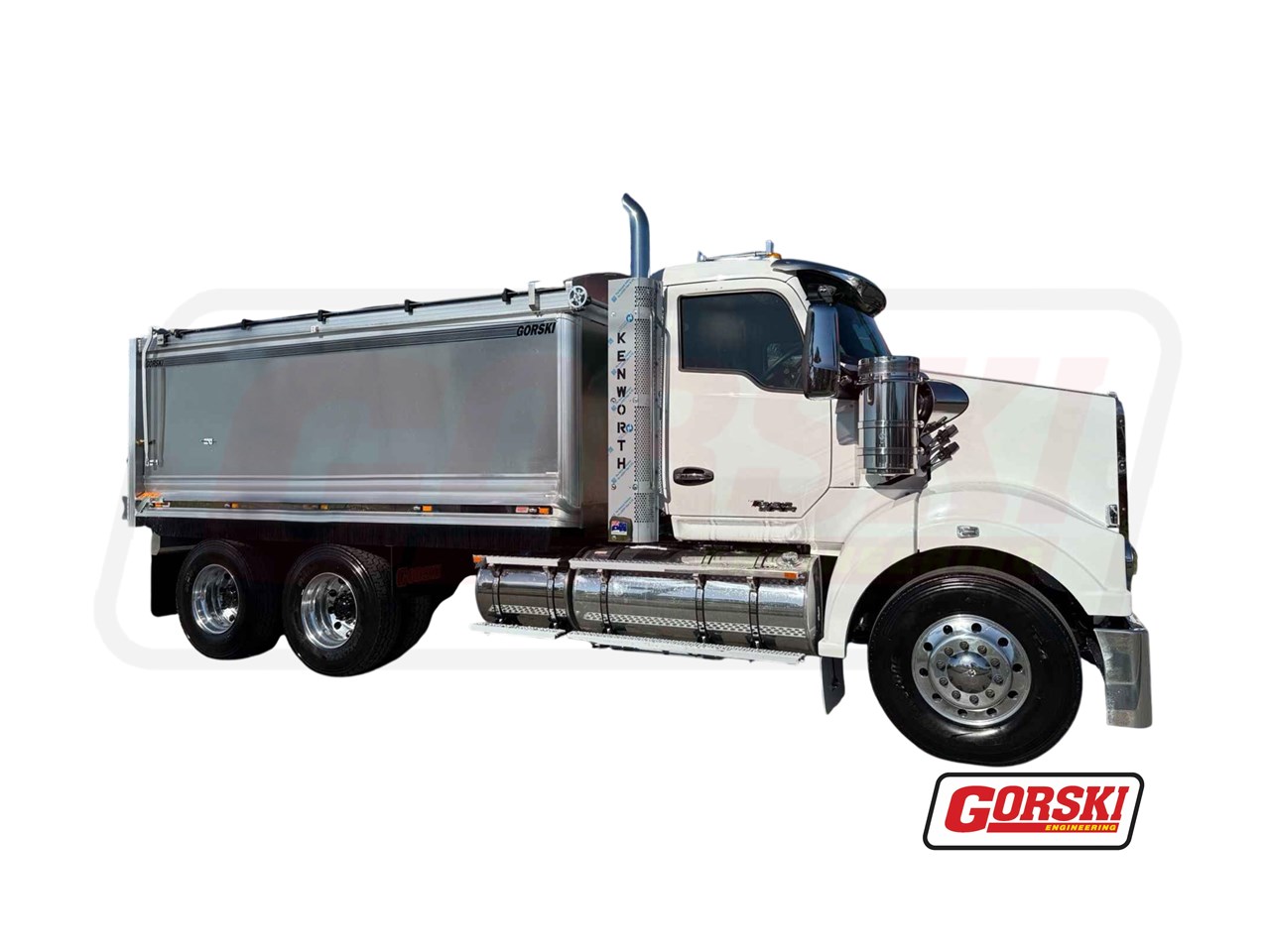

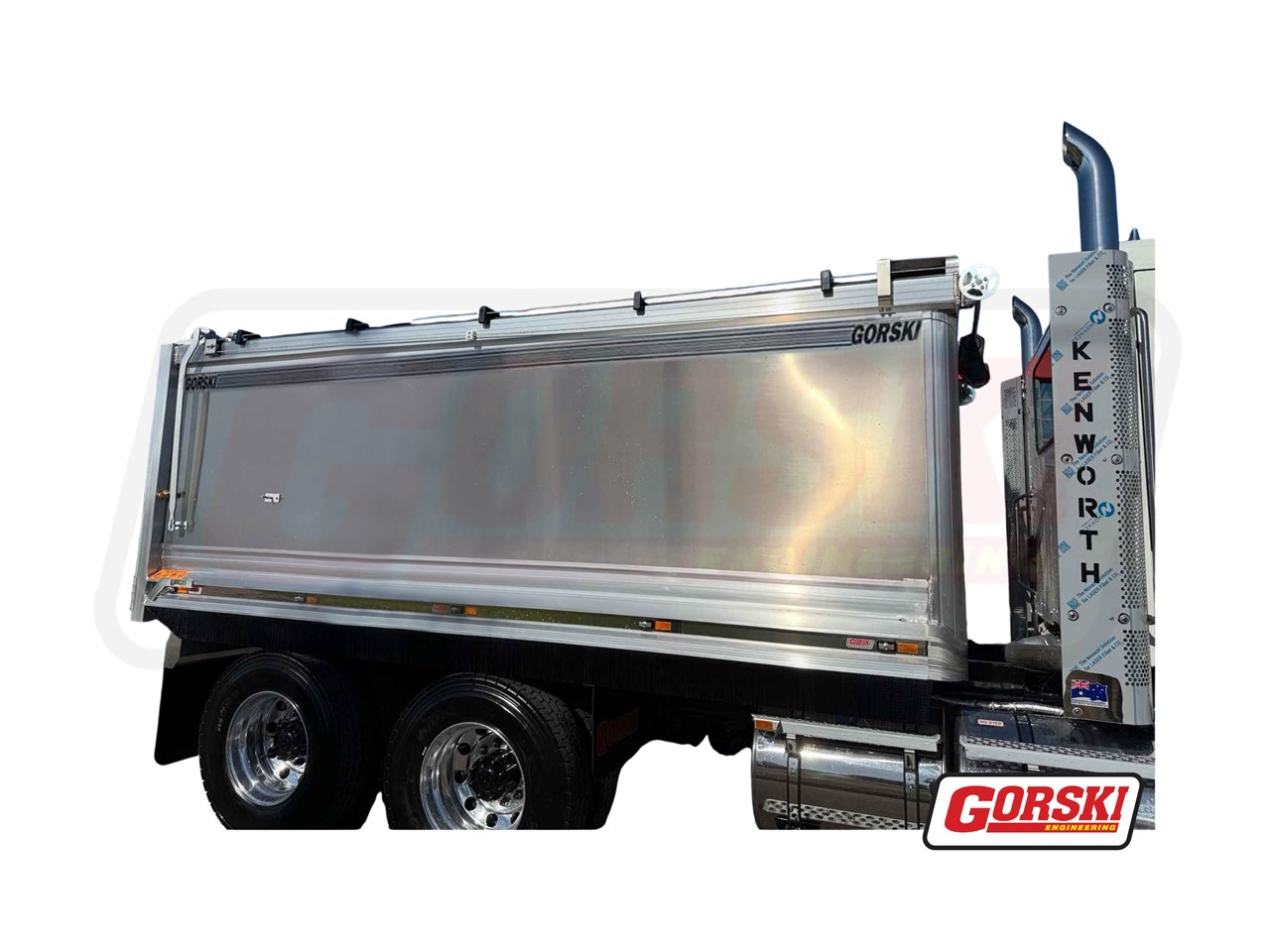

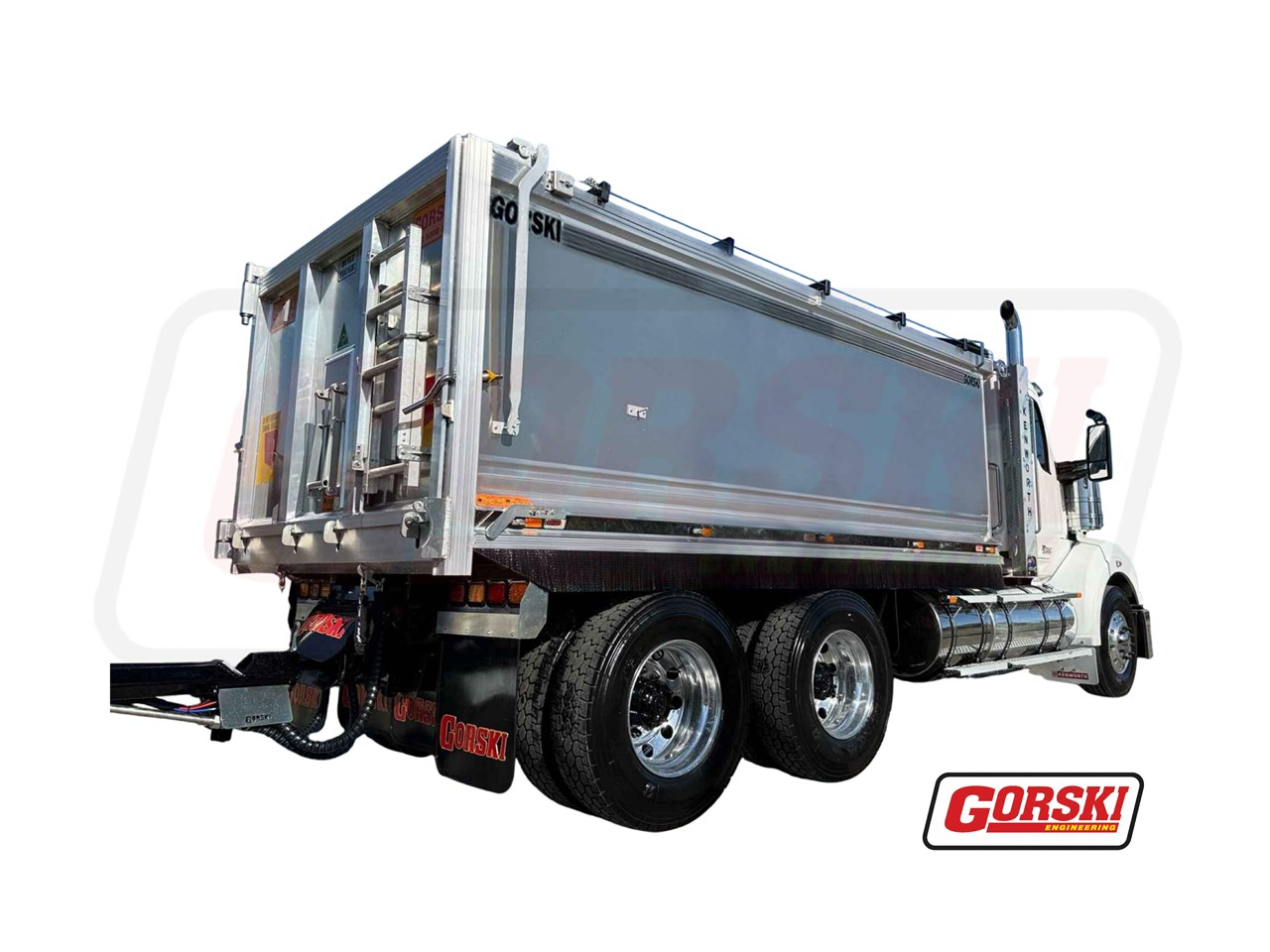

2026 GORSKI TIPPING BODY

ALUMINIUM *BODY:* "Gorski Premium" Body up to 15m3 approx. Up to 4650mm Long - Body Dimensions subject to final engineering design and approval - 5mm Grade 5083 Aluminium Side Sheets with extruded Top Rail and internal bottom radius. - 5mm Grade 5083 Aluminium Tailgate with 1-way hinge, air operated - 8mm Grade 5083 Aluminium Floor Sheet (upgradeable to 10mm as an option) - Main Bearer extrusion 160mm - Spreader Chains connected to tailgate Included: 175mm Spray Suppressant, Stainless Steel Strip Behind Side Markers, 1 x Aluminium Drop Down Ladder at Rear, 1 x Aluminium Grain Door & 1 x Set Grain Locks *SUBFRAME:* "Gorski Premium" heavy duty main bearers custom length depending on truck airbag/wheel clearance, minimum 125x75x5mm RHS. Rear body pivots 50mm and removable body safety prop fitted to subframe. *TOW CONNECTION:* "Gorski Premium" fabricated tow crossmember rated to min 35T (DT3/DT4) max 47T (DT5/DT6) with 50mm Rockinger coupling and 16mm chains. Trailer fittings included with 1" hydraulic coupling for trailer hoist, Duomatic couplings for trailer brakes, tailgate and turntable lock. 7 pin electric plug for trailer electrics and EBS plug also. Compliant with ADR 62 requirements *HYDRAULICS:* -Hidromas / Hyva 3 Stage telescopic hoist w/ chrome plated stages, 24T approx. well mounted / upgrade to Front mount available at additional cost with Safety Burst Valve as standard -"Gorski Premium" pendant Cab Switches Electric - Oil Tank (filled), PTO, Pump & Valve to suit. - Gearbox included: Roadranger or Fuller (KW, Western Star, Mack) I-Shift (Volvo) SR/VT/AT Series (Volvo) M Drive (Mack) All other gearboxes will be quoted as an additional extra *** Please Note that all Automatic Transmissions Without Factory PTO, Require Programming for PTO Operation. This is the Responsibility of Customer, and Should be Done Prior to Coming to Gorski Engineering. *LIGHTING:* LED Side Lamps x5 per side, LED Rear Lamps x4 per side with regulation reflectors, 2x reverse spots, licence plate lamp and reverse squawker. Stainless Steel Strip Gorski Guard under side markers. - "Gorski Premium" Aluminium Light Brackets fitted to heavy duty, 50x50x5mm RHS. Compliant with ADR 13. *PAINT:* Chassis Rails (black) finished using hi-grade industrial paint (2 Pac). Side/Rear Gorski decals also included, as well as regulation Rear Marker Plates and safety stickers. *TARP:* Razor electric remote control tarp kit, Black PVC **Please note: The premium amperage for supply from vehicle to your Razor Tarp Motor is 5 Amps. If your prime mover is unable to supply this amperage you may need your auto elec for further works after delivery. *VASS:* VASS Certificate Included *ADDITIONAL EXTRAS:* Please see list of all upgradeable extras PLEASE NOTE: PHOTOS TO BE USED AS A GUIDE ONLY. PRIME MOVER NOT INCLUDED
